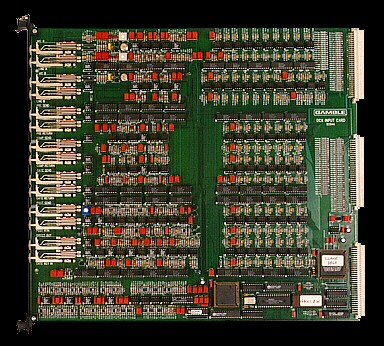

    2 Mic Inputs, Very low noise Mic preamp with 6dB to 60dB of gain,
    with superior RFI and CMRR.
    Slow on / Slow off Phantom Power switching (Mic A and Mic B).
    2 Line Inputs.
    4x1 mixing
    of separate Mic A / Mic B / Line A / Line B faders.
    Phase Reverse
    Low-Cut
    with 24dB per octave Bessel filter (15Hz to 300Hz).
    Balanced Pre Comp/EQ and Post Comp/EQ Inserts.
    A Full Featured Compressor
    with Attack (.1ms to 90ms) / Release
    (.25 to 2 sec.) / Ratio (1:1 to 30:1) / Threshold (-16dBv to +8dBv) /
    Output Level / Balanced Sidechain with Stereo Linking or Slave-Master.
    Four Band Super Parametric EQ with 1/10th to 2 octave bandwidth.
    High-Freq.(Peak/Shelf) 1kHz to 16kHz, +/-15dB boost-cut.
    High-Mid (Peak/Notch) 650Hz to 12kHz, +15dB boost / -40dB cut.
    Low-Mid (Peak/Notch) 100Hz to 1.6kHz, +15dB boost / -40dB cut.
    Low Freq.(Peak/Shelf) 30Hz to 500Hz, +/-15dB boost-cut.
    Switchable EQ path for tape playback (Line B thru EQ into Stereo Aux 16).
    Gate with Depth (0dBu to -80dBu) Threshold (-50dBu to -10dBu) / Attack (1/9 to 2 sec.) / Release (1/9 to 2 sec.) / Gate Key In with Level and Full Parametric EQ (80Hz-4.5kHz) / Balanced Sidechain with Stereo Linking or Slave-Master.
    Multifunction Left-Center-Right Panning with either Standard Pan or True L-C-R Pan (with pan depth control, allowing the adjustment of Left and Right level while in the center position).
    Input Ultra-Fader with 85 dB range /Mute
    8 Stereo Subgroups
    with Discreet Left and Right Levels with Stereo Linking and panning.
    Stereo Master Feed with Discreet Left and Right Levels with Stereo Linking and Panning.
    Separate Mono and Center busses.
    16 Stereo Aux Sends
    with Selectable Pre Fader (Post Mute) or Post Fader, with Discreet Left and Right Levels with Stereo Linking and Panning.
    Independent Stereo Cue Systems (Cue A and Cue B) Separate Cueing of Pre Fader / Post Pan / Mic A, Line A / Mic B, Line B, Gate Key Cue
    Direct Out is selectable Pre or Post fader
    4 VU Meters (with simultaneous peak and average reading) Input Pre Fader
    (or Line B In or Gate Key In) / Input Post Fader / Compressor / Gate.
    Peak-Clip Indicators for Mic A / Mic B / Pre EQ insert / Compressor / EQ (Post EQ insert) / Post Fader.
